Open Type Paper Industry HeadBox
|Payment Type:||L/C,T/T,Paypal,Western Union|
|Terms of Trade:||FOB,CFR,CIF|
|Min. Order:||1 Set/Sets|
|Delivery Time:||30 Days|
|Place of Origin:||CHINA|
|Supply Ability:||TIMELY DELIVERY|
Model No.: HUATAO-HEADBOX001
Open type Paper Industry HeadBox
1.Open Type Paper Industry HeadBox Description
Fourdrinier open type headbox in paper making machine for sale is the key of paper machine,the function is supplying uniform and steady pulp flow to paper machine wire part.
Huatao Provide headbox according to informaiton of our customers paper making machine, calculate and design with the help of computer,. Thus, our headbox can meet customers requirements and obtain the best using effect, with good formation of paper web, small cross basic weight difference.
Headbox is the Key of paper machine, the function is supplying uniform and steady pulp flow to paper machiine wire part. Different pulp, different machine speed, different flow the design of headbox is different. So when choose headbox, please pay more attention.
Our company design and produce headbox according to the information of our customers paper making machine, calculate and design with the help of computer, Thus, our headbox can meet customers requirements and obtain the best using effect, with good formation of paper web, small cross basic weight difference.
Paper Machine Renovation
Vacuum Box Cover
Felt Suction Box
2.Open Type Paper Industry HeadBox Parameters
(1)Holy roll: 2 stainless steel holy roll with the diameter of 200mm.
(2)Square taper pipe is made of stainless steel .
(3)Cloth paste is organic glass cloth paste ladder
(4)The headbox is welded steel, lined with mirror stainless steel plate or can also be made of full stainless steel.There is a gate in the box.
(the difference between the air-cushioned headbox)
(5)Adjusting device : With a total transfer mechanism and the trim mechanism of upper plate
(6)Spray device : The box body is provided with a spray device.
3.Open Type Paper Industry HeadBox Technical Specification
|Trimmed Width (mm)||3200||3600||3800|
|Width of Jet (mm)||3350||3800||4050|
|Work Speed (m/min)||200-300||200-300||200-300|
|Diameter of Holy Roll (mm)||220||220||220|
4.Open Type Paper Industry HeadBox service
- Solve comprehensive problem, create value for customers.
- We have a technical service team composed of engineers specialized in stock preparation and paper-making and with long term working experience in paper mill.
- As long as you provide us the detailed technical data of your paper-making machine and the specifications and size of the products you want, we can provide you the best design and chose the best product.
- We can provide you with the proper diagnosis and remedies for application of the products. Also, we can provide technical training for you can use our products more reasonable.
- Before sales, in production and after sales, we insist on creating value for customers and custom designing products and best solutions for customers.
- For all complaints we received during the application of our products, we will handle it in 24 hours
5.Open Type Paper Industry HeadBox How To Maintained
WARRANTY: 12 months from the date of last major dispatch for manufacturing defects.

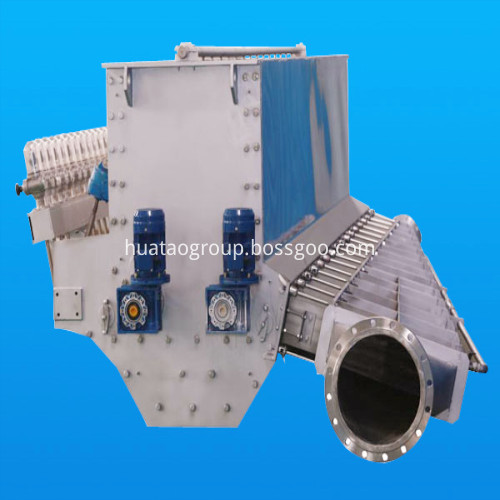

6.Open Type Paper Industry HeadBox Pictures
Other Related Products
Open Type Headbox
Air Cushion Headbox
Cylinder Former/Short Former
