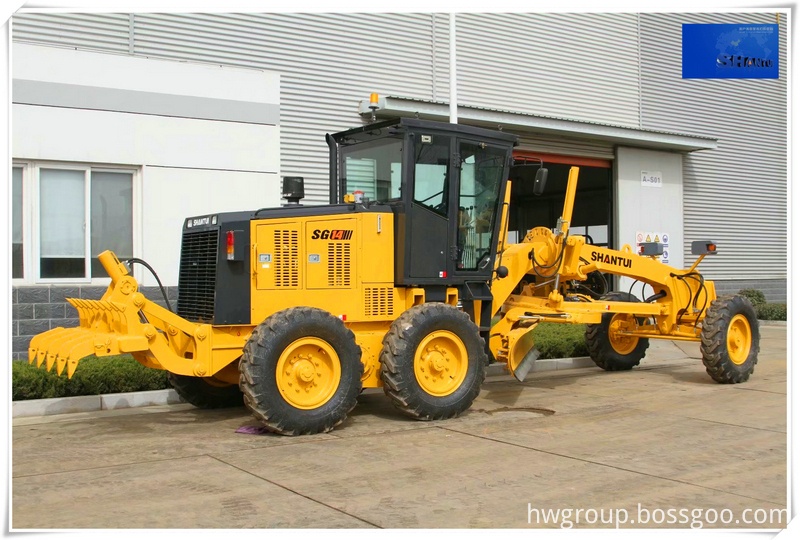

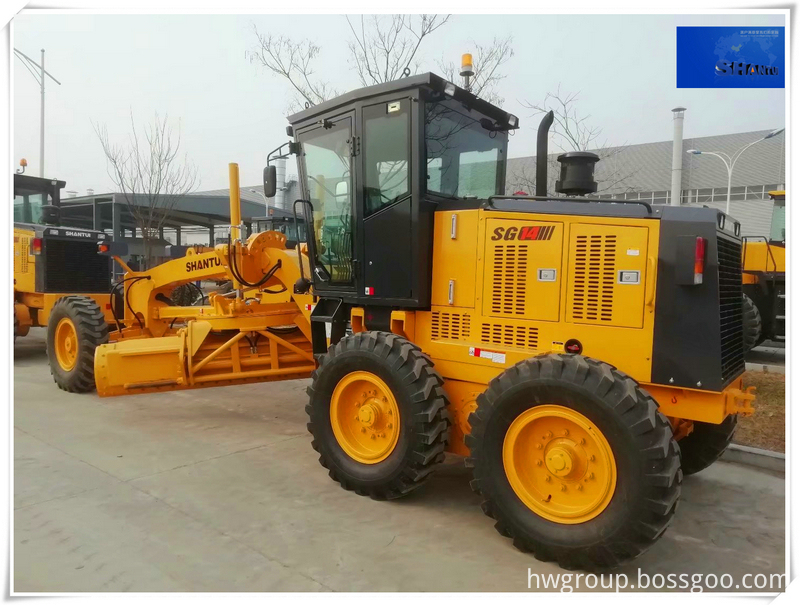

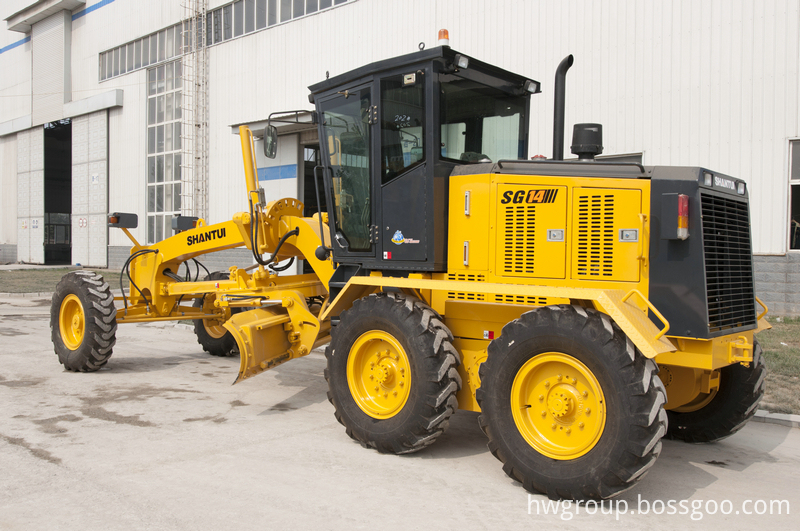

SG14 Motor Grader Machine

  • SG14 Motor Grader Machine
  • SG14 Motor Grader Machine
  • SG14 Motor Grader Machine
  • SG14 Motor Grader Machine

SG14 Motor Grader Machine

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW,FCA
    Min. Order: 1 Set/Sets
    Delivery Time: 5 Days
    Packaging: Standard package
    Productivity: 10000sets/year
    Brand: HengWang
    Transportation: Ocean,Land
    Place of Origin: Shandong,China
    Supply Ability: 10000sets/year
    Certificate: CE,ISO
    HS Code: 8429209000
    Port: Qingdao Port,Tianjin Port,Shanghai Port

Basic Info

Model No.: SG14

Product Description

SG14 Motor Grader

Power System
● It's powered by Dongfeng Cummins 6BTAA5.9-C150 China-II compliant inline, 4-stroke, direct injection, water-cooled, and turbocharged and intercooled diesel engine, featuring compact structure, stable performances, and high efficiency and energy-saving.

● The high torque reserve enables the machine to output stable power under severe working conditions and meet your working needs.

Grader MotorSG16-3_1

Grader motorSG-14

Product Parameters:


Product name SG14
Performance parameters
Operating weight of machine (kg) 11600
Wheelbase (mm) 5812
Wheel tread (mm) 2050
Minimum ground clearance (mm) 430
Steering angle of front wheels (°) ±45
Articulated steering angle (°) ±25
Maximum traction force (kN) 65(f=0.75)
Turning radius (mm) 6600 (Outer side of front wheel)
Maximum gradeability (°) 20
Width of shovel blade (mm) 3660
Height of shovel blade (mm) 615
Blade slewing angle (º) 360
Blade cutting angle (º) 30-68
Maximum digging depth of blade (mm) 500
Length (mm) 8036
Width (mm) 2380
Heigh (mm) 3170
Engine
Engine model 6BTAA5.9-C150
Emission China-II
Type Mechanical direct injection
Rated power/rated speed (kw/rpm) 112kW/2200
Drive system
Torque converter Single-stage single-phase three-element
Transmission Countershaft power shift
Gears Six forward and three reverse
Speed for forward gear I (km/h) 5.4
Speed for forward gear II (km/h) 8.3
Speed for forward gear III (km/h) 13.2
Speed for forward gear IV (km/h) 20.6
Speed for forward gear V (km/h) 29.6
Speed for forward gear VI (km/h) 44
Speed for reverse gear I (km/h) 5.4
Speed for reverse gear II (km/h) 13.2
Speed for reverse gear III (km/h) 29.6
Brake system
Service brake type Hydraulic brake
Parking brake type Mechanical brake
Brake oil pressure (MPa) 10
Hydraulic system
Working pump Constant displacement gear pump, with flow at 28ml/r
Operating valve Integral multi-way valve
Pressure setting of safety valve (MPa) 16
Pressure setting of safety valve (MPa) 12.5
Filling of fuel/oils/fluids
Fuel tank (L) 220
Working hydraulic fuel tank (L) 85
Transmission (L) 28
Drive axle (L) 28
Balance box (L) 2X23
SG14 2psb (4)psb (5)psb (6)psb (7)psb


Packing&Shipping:

shipping





certificate

work shop


visit


exhibation

FAQ:

1.Are you factory?

A: We are factory and trading company,we are professional manufacturer of solar pile driver ,Highway guardrail pile driver,Hydraulic water well drilling rig,Pneumatic water well drilling rig etc.


2.What brand of the machinery can we supply?
A: HW, Sem, XCMG, ZGYX brand etc.


3.What kind terms of payment can be accepted?
A:Normally we can work on T/T term or L/C term.


4.What about the warranty time?
A:12 months after shipment, excluding wearing parts, We offer these parts with lowest price at any time.


5.How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock or it is 15-25 days if the goods are not in stock, it is according to quantity.


6.Our after services:
Our sales team will response for your question within 24 hours. (Holidays Excluded)
Technical support will be available at any time.
Free replacement will provide once the failure confirmed caused by our product quality.


7.Shipping way

By air or by sea as you required.
